3U Small Industrial Wall Mount Touch Screen Computer Support Full Height PCI-E Slot
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | \ |
| Model Number: | Z613-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Connectivity: | Wi-Fi, Bluetooth | Graphics: | Intel HD Graphics |
|---|---|---|---|
| Humidity Range: | 10-90% RH | Operating System: | Windows |
| Ports: | USB 3.0, HDMI, Ethernet | Power Supply: | ATX |
| Product Type: | Industrial Embedded PC | Storage: | SATA\MSATA |
| Temperature Range: | 0-50°C | ||
| Highlight: | 3U Wall Mount Touch Screen Computer,Industrial Wall Mount Touch Screen Computer |
||
Product Description

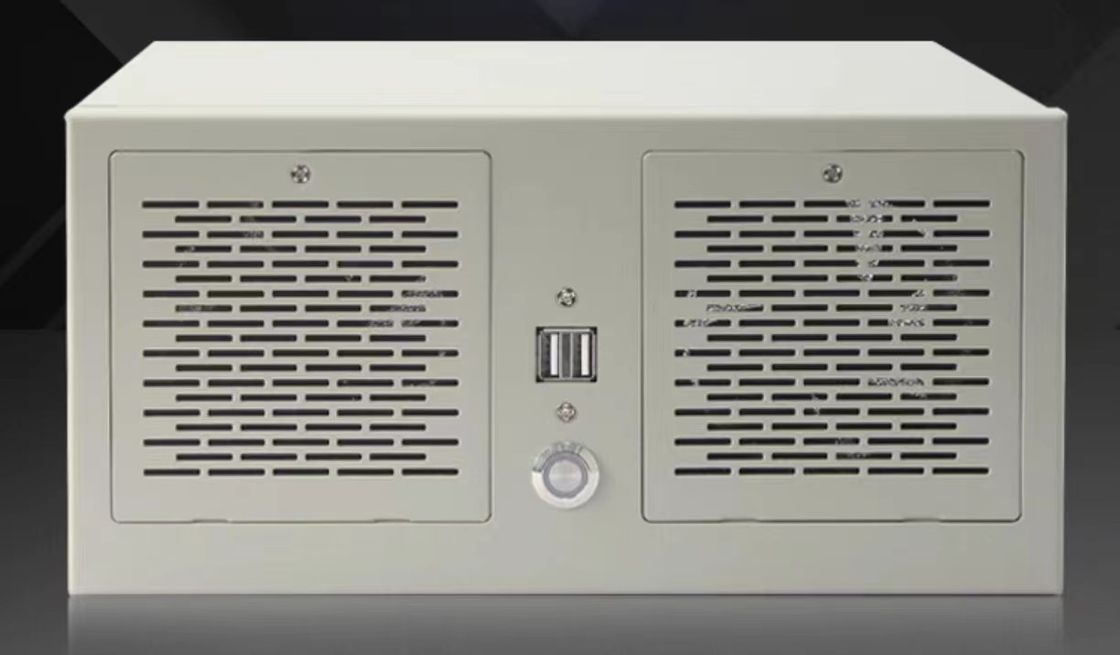

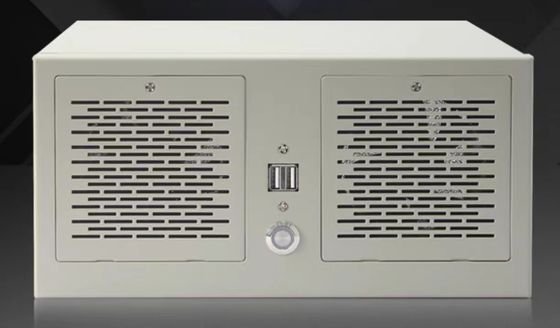

3U Small Industrial Computer ( Wall Mountable) Support Full Height PCI-E Slot
Product introduction
Hanlizer 3U small industrial machine adopts Intel® industrial control solution, standard i7-4770 processor, 4G memory, 128GB solid state drive.
This model is beautiful, stable and durable; it has complete functions and interfaces, supports Windows/Linux systems, is powered on and can be installed on a shelf, and has a wide range of applications.
Product Features
● Intel® industrial control solutions;
● Compact structure, silent air duct;
● Support full height PCI-E slot;
● Dual Gigabit Ethernet ports, dual display ports, multiple USB , serial ports
● Support Windows/Linux system;
● Front USB , metal switch / indicator, power on and start;
● Rack installation;
Product Specifications
| Host | |
| Intel ® i7-4770 ( support I3/I5/I7 3-9 generations ) | |
| DDR3L 4GB (expandable) | |
| 128GB 2.5" SATA SSD (expandable) | |
| I/O | |
| VGA×2 | |
| USB3.0×2 , USB2.0×4 | |
| RJ45 1000M × 2 (expandable) | |
| PCI-E X16 ×1 | |
| RS232 DB9 × 6 (optional RS485/422 ) | |
| 3.5mm AUDIO×1 | |
| 3.5mm MIC×1 | |
| PS/2×1 | |
| 1U ATX 220V180W | |
| Install | |
| 0~50 ℃, 5% ~ 95% non-condensing state | |
| -20~60 ℃, 5% ~ 95 % non-condensing state | |
| 220V mains power | |
| 90W | |
| about 6kg | |
| about 8kg | |
| 263(W)×232(D)×130(H)mm | |
| 365(W)×335(D)×245(H)mm | |
|
Mounting screw fixing |
|
