Compact Embedded Industrial Computer Touch Screen DDR3L / DDR4 Memory
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | \ |
| Model Number: | HLZ-Z613 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Display: | VGA/HDMI/DP | Expansion: | Mini-PCIe/PCIe |
|---|---|---|---|
| Humidity: | Wide Operating Humidity | I/O: | USB/COM/GPIO/Audio |
| Memory: | DDR3L/DDR4 | Mounting: | Wall/DIN Rail/VESA |
| Network: | Gigabit Ethernet | Operating System: | Windows/Linux |
| Power Supply: | DC 9-36V | Processor: | Intel Atom/Celeron/Core I3/i5/i7 |
| Size: | Compact Size | Storage: | MSATA/2.5” SATA HDD/SSD |
| Temperature: | Wide Operating Temp. | Warranty: | 3 Years |
| Highlight: | DDR3L Embedded Industrial Computer,DDR4 Embedded Industrial Computer,Industrial Compact Embedded Computer |
||
Product Description
HLZ-Z613
Detailed Product Description
| Name: | Embedded Industrial PC | Hard Disk Rack: | 1 Anti-seismic Hard Disk Rack, Supporting One 3.5 Inch Or 2.5 Inch Hard Disk |
|---|---|---|---|
| Adapt Motherboard: | Intel B75/H81/H110 Chip MINI-ITX Motherboard | CPU/GPU: | Intel I5 4300 |
| Memory: | 4G DDR3 | Hard Disk: | 256G MSATA Or M.2 |
| High Light: | industrial embedded computer,industrial embedded computers,256G Embedded Industrial PC | ||
HLZ-Z613 Embedded industrial computer, 1 PCI or PCIE extension, supporting i3/i5/i7 CPU, supporting multiple serial port
Features:
■ Heat Dissipation, Dust Prevention and Seismic Resistance
■ Support all Mini-ITX motherboards of Yanyue
■ Supporting a PCI or PCIEx16 extension
■ 9 additional antenna slots and 2 additional antenna slots can be introduced later.
■ Up to 2-4 serial ports and 4 USB
■ Dust-proof sponge can be replaced and cleaned without shutting down the machine
| Specification parameters | Optional configuration | ||||||||
| Chassis | All steel structure, powder-sprayed black | Optional industrial grey and other colors | |||||||

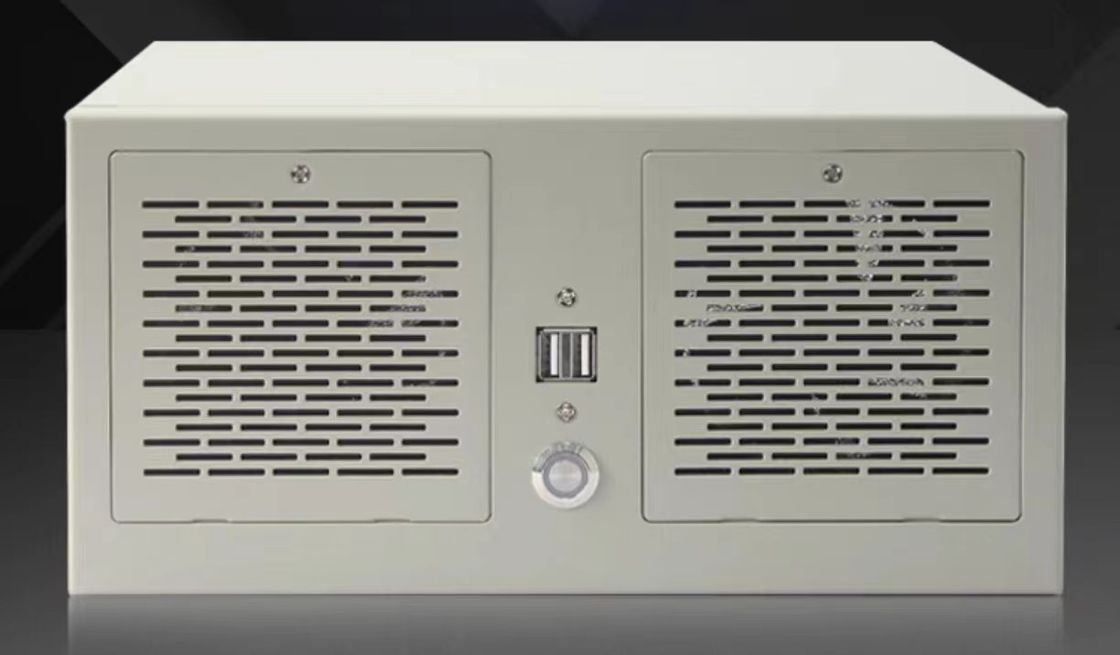

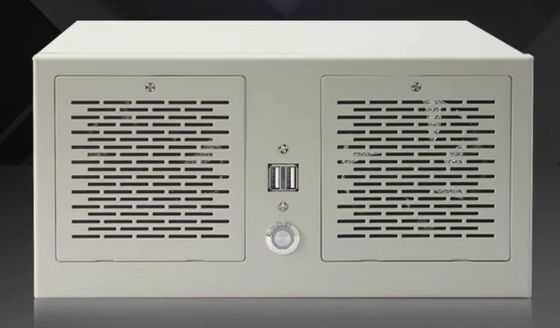

| Front | POWER/HDD Indicator Lamp, Power Button Switch,Two suction fans can replace and clean dust-proof sponge without shutting down | Customizable customer LOGO or other requirements | |||||||
| Back | Main board large square hole, 1 expansion slot; 4 DB9, 4 USB interface bits, 2 WIFI antenna slots, | Customizable other interface bits | |||||||
| Hard disk rack | 1 anti-seismic hard disk rack, supporting one 3.5 inch or 2.5 inch hard disk | ||||||||
| Adapt motherboard | Intel B75/H81/H110 chip MINI-ITX motherboard | Optional all ITX motherboard of Yanyue | |||||||
| CPU/GPU | Intel i5 4300 | Support 3, 4, 6, 7 generations desktop CPU or board CPU | |||||||
| Memory | 4G DDR3 | Optional 2G/8G/16G notebook memory | |||||||
| Hard disk | 256G MSATA | Optional 32G/64G/256G Msata solid state hard disk; support 3.5 inch mechanical hard disk or 2.5 inch capacity hard disk | |||||||
| Interface | AC input; 6USB (2 USB3.0); 2RJ45 (gigabit); 1VGA; 1HDMI, audio output; MIC input; 2-4COM (standard) | Optional extraction of all interfaces on the chassis | |||||||
| Extension | 1 PCI Extension | Three, four, six and seven generations all support one PCIEx16 extension. | |||||||

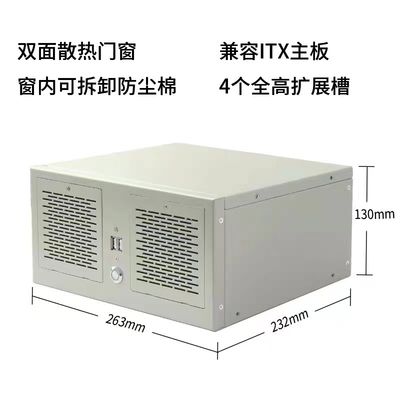

| Size | No bracket:263mm * 232mm * 130mm | Net/Gross Weight | 3.5/4KG | ||||||
| Industrial Power Supply | 200W Industrial 1U Power Supply | ||||||||
| Installation mode | Bracket installation | ||||||||
| Work and Environment | |||||||||
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | ||||
| Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | ||||||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | ||||||
Want to Know more details about this product
