4G 128G WIFI Industrial Embedded PC INTEL J1900 1U Industrial Computers
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | \ |
| Model Number: | B311-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Audio: | Realtek ALC888 | Chipset: | Intel Atom/Celeron/Pentium |
|---|---|---|---|
| Dimension: | Mini-ITX/Micro-ATX/ATX | Display: | VGA/HDMI/LVDS |
| Expansion: | Mini-PCIe/PCIe/LPC | Humidity: | 5% To 95% RH |
| Memory: | DDR3L/DDR4 | Network: | Gigabit Ethernet |
| Operating System: | Windows/Linux | Power: | 12V/24V DC |
| Processor: | Intel Atom/Celeron/Pentium | Storage: | SATA/mSATA/CFast |
| Temperature: | 0°C To 60°C | Type: | Industrial Embedded PC |
| USB: | USB 3.0/2.0 | ||
| Highlight: | WIFI Industrial Embedded PC,128G Industrial Embedded PC,Embedded 1U Industrial Computers |
||
Product Description
1U BOX Industrial Computer INTEL J1900 4G 128G WIFI 4G Embedded PC
Product introduction
HLZ-B311-01 built-in Intel® J1900 processor, standard 4G memory , 64GB solid state hard drive .
This model is small in size, has the characteristics of low power consumption, quietness, stability, etc., complete functional interfaces, easy installation, and is widely used in industrial equipment and automation fields.
Product Features
● Support power-on and start-up, stable and reliable operation;
● Fanless structure design, quiet and dustproof;
● All aluminum alloy material, anodizing process;
● Dual Gigabit Ethernet ports, USB3.0 , RS232/485 ;
● Aviation socket power interface;
● Support Windows/Linux system ;
● Optional up to 10 GPIOs ;
● Optional HDMI+VGA dual-screen display;
● Optional Wi-Fi/ Bluetooth /3G/4G network ;
Product Specifications
| Host | |
| Intel ® J1900 Quad Core 2.0 ( I3/I5 optional ) | |
| 4GB DDR3L 1600 (support 8G ) | |
| 64GB mSATA SSD (capacity optional) | |
| I/O | |
| HDMI×1 , VGA×1 | |
| USB2.0×2 | |
| RJ45 1000M ×2 | |
| DB9 RS232 ×1 | |
| 3.5mm AUDIO×1 | |
| Metal reset switch × 1 | |
| DC5.5mm×2.5mm | |
| Install | |
| -10~60 ℃, 5% ~ 95% non-condensing state | |
| - 20~70 ℃, 5% ~ 95 % non-condensing state | |
| GB/T9813.4-2007 | |
| 220~240VAC-DC12V5A | |
| 20W | |
| About 1.5kg | |
| black (optional silver) | |

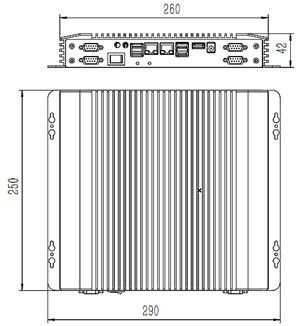

| 290(W)×250(D)×42(H)mm | |
| 276(W)×200(D) 4-M3 | |
| Rack type, case grounded | |
