18.5 Inch 1000:1 Fanless Industrial Panel PC Scalable Wi-Fi / Bluetooth / 4G
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | \ |
| Model Number: | P185R-03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Brightness: | 350 Cd/m2 | CPU: | Intel Celeron J1900 |
|---|---|---|---|
| Contrast Ratio: | 1000:1 | Humidity: | 10% To 90% RH |
| I/O Ports: | 2 X USB 3.0, 2 X USB 2.0, 1 X HDMI, 1 X RJ45, 1 X Audio | Mounting: | VESA 75mm & 100mm |
| Operating System: | Windows 10 | Operating Temperature: | 0°C To 50°C |
| Power Supply: | 12V DC | RAM: | 4GB |
| Resolution: | 1920 X 1080 | Size: | 18.5inch |
| Storage: | 128GB SSD | Touch Screen: | 10-point Capacitive Touch |
| Viewing Angle: | 178° | ||
| Highlight: | 18.5 Inch Fanless Industrial Panel PC,1000:1 Fanless Industrial Panel PC |
||
Product Description

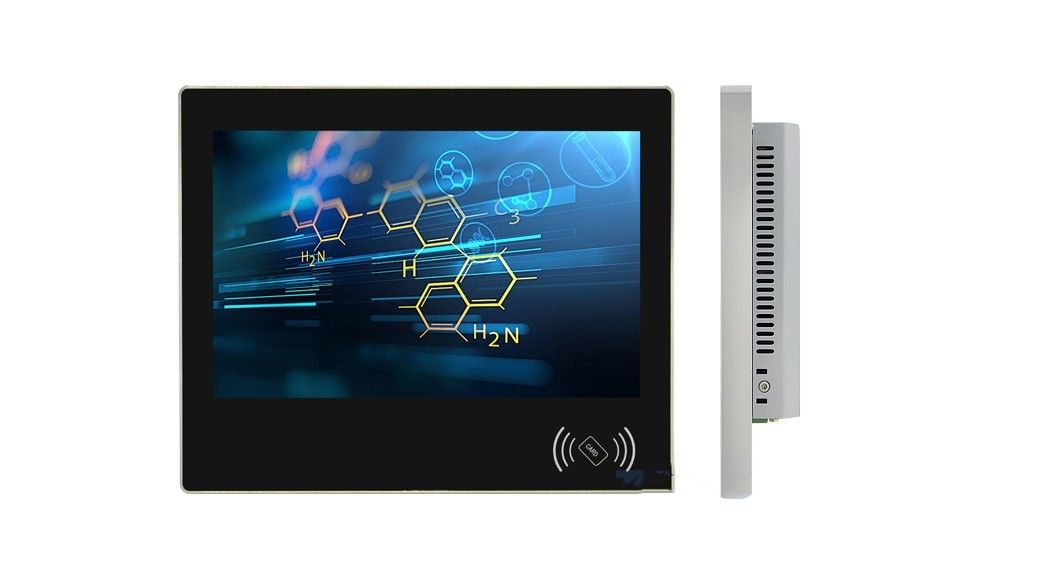

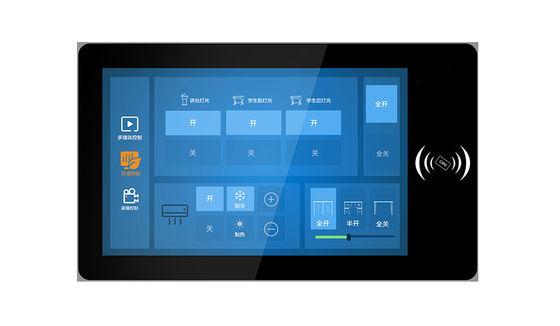

18.5" Touch Industrial Panel PC Scalable Wi-Fi/ Bluetooth /4G
Product introduction
Hanlizer 18.5" tablet PC adopts Intel® industrial control solution, standard ARM RK3288 processor, 2G memory, 32GB solid state drive, touch screen and IC card reader.
This model has the characteristics of beauty, reliability and durability; it has complete functions and interfaces, supports Windows/Linux systems, and can be installed on the wall or embedded in a wide range of applications.
Product Features
● Intel® industrial control solutions;
● Aluminum alloy anodizing process;
● support touch;
● Support IC card swiping;
● Dual Gigabit Ethernet ports, dual display ports, multiple USB , serial ports
● Scalable Wi-Fi/ Bluetooth /4G communication module;
● Support Windows/Linux system;
Optional wall / flush installation
Product Specifications
| Host | |
| ARM RK3288 | |
| 2GB | |
| 32GB | |
| Screen | |
| 18.5" | |
| 1920 ×1080 | |
| 350 cd/m² | |
| Capacitive touch (optional resistive touch) | |
| I/O | |
| HDMI×1 | |
| VGA×1 (optional) | |
| USB3.0×1 , USB2.0×3 | |
| RJ45 1000M ×2 | |
| RS232 DB9 × 5 (optional RS485 × 1 ) | |
| 3.5mm AUDIO×1 | |
| 3.5mm MIC×1 | |
| Install | |
| -10~60 ℃, 5% ~ 95% non-condensing state | |
| -20~60 ℃, 5% ~ 95 % non-condensing state | |
| 220V to DC12V5A Φ 12mm aerial plug | |
| 50W | |
| about 10kg | |
| 531×281×67mm | |
| black / silver (optional) | |
| Wall Mount ( VESA bracket sold separately) / Recessed | |
