4U Rackmount Industrial Computer 19 Inch Support Windows / Linux System
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | \ |
| Model Number: | Z610P-05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Chipset: | Intel H110/Q170/Q270/C236/C232 | Cooling System: | Fanless, Heatpipe |
|---|---|---|---|
| Dimension: | 482.6mm X 438mm X 44.45mm | Expansion: | 2 X PCIe X16, 1 X PCIe X4, 1 X Mini-PCIe |
| I/O: | 2 X GbE, 4 X USB 3.0, 2 X COM, 1 X HDMI/DP | Memory: | 2 X DDR4 SO-DIMM, Up To 32GB |
| OS Support: | Windows/Linux | Operating Temperature: | -20°C To 60°C |
| Power Supply: | AC/DC, AT/ATX | Processor: | Intel Core I7/i5/i3/Celeron/Atom |
| Storage: | 1 X 2.5” SATA HDD/SSD, 1 X MSATA/mPCIE | Type: | Industrial Rackmount PC |
| Warranty: | 3 Years | Weight: | 7.5kg |
| Highlight: | 4U Rackmount Industrial Computer,Rackmount Industrial Computer 19 Inch,4U Rackmount Computer 19 Inch |
||
Product Description

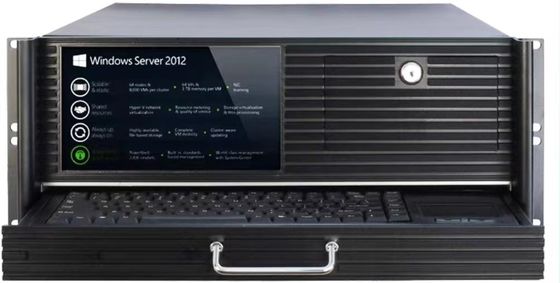

4U Industrial Standard Complete Machine With Screen
Product introduction
Hanlize 4U industrial control 19 -inch machine is put on the shelf, and the chassis design meets the requirements of industrial control EMC . Using Intel® I3I5I7 processor, standard 8G memory, 1TB mechanical hard disk, 9 -inch LCD , resistive touch. .
This model has the characteristics of beautiful appearance and stable operation; it has complete functions and interfaces, supports Windows/Linux system, and is suitable for industrial computing and service occasions.
Product Features
● Intel® industrial control solutions;
● High-performance graphics processing capability;
● Stable operation for a long time;
● Gigabit Ethernet port, VGA , USB3.0 , RS232 ;
● Support Windows/Linux system;
● Built-in display, resistive touch;
● Standard rack mount.
Product Specifications
| Host | |
| Intel ® i7-6700 ( optional I3/I5/I7 3-9 generation) | |
| DDR4 8GB (expandable) | |
| 512GB SSD (expandable) | |
| RTX1060 | |
| ATX550W | |
| I/O | |
| HDMI×1 | |
| VGA×1 | |
| USB3.0×2 , USB2.0×4 | |
| RJ45 1000M ×2 | |
| RS232 ×1 | |
| 3.5mm AUDIO×1 | |
| 3.5mm MIC×1 | |
| C14 AC socket | |
| Install | |
| -10~60 ℃, 5% ~ 95% non-condensing state | |
| -20~60 ℃, 5% ~ 95 % non-condensing state | |
| 220V to DC12V12.5A adapter | |
| 400W | |
| About 18kg | |

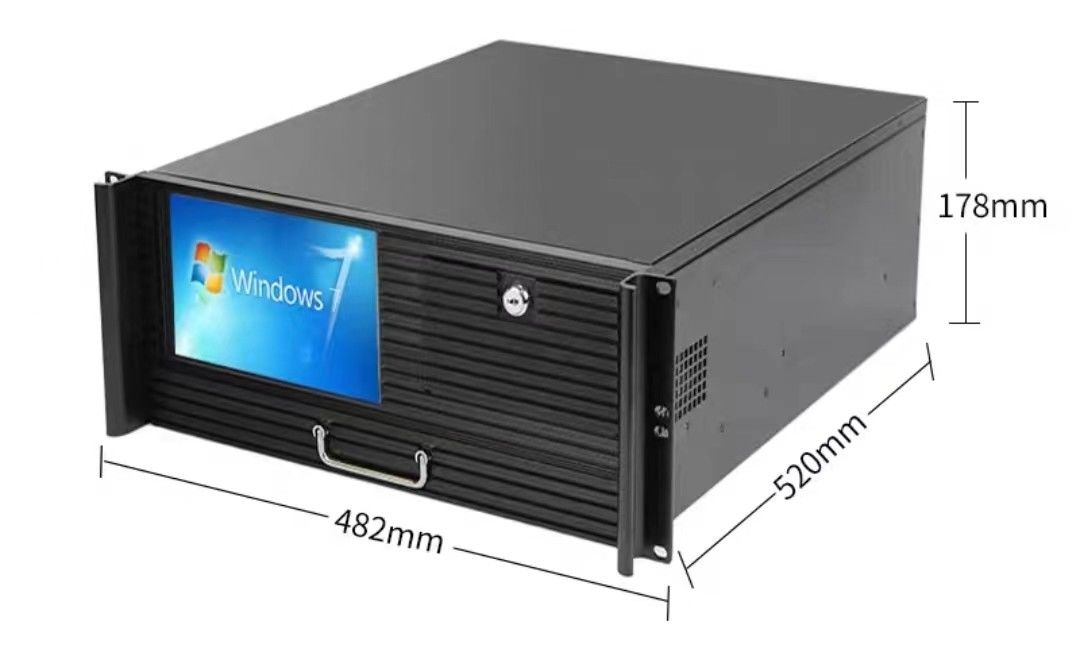

| 485(W)×467(D)×197(H)mm | |
