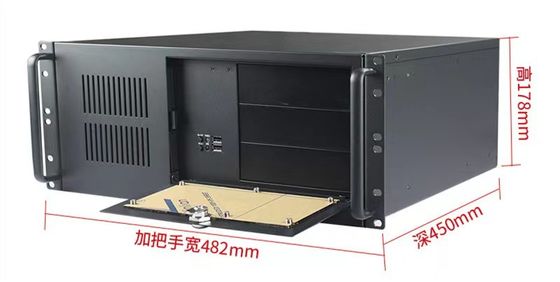

4U IPC Industrial Rack Mount Computer Upper Rack 7 Or 14 Expansion Slots
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | \ |
| Model Number: | HLZ-Z610 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Chipset: | Intel H110/B150/Q170/C236 | Cooling System: | Fanless/Air Cooling |
|---|---|---|---|
| Dimensions: | 482mm X 44mm X 270mm | Display: | HDMI/VGA/DP |
| Expansion Slots: | PCIe/PCI/Mini-PCIe | Form Factor: | Rackmount |
| I/O Interfaces: | USB/COM/LAN/Audio | Memory: | DDR4/DDR3L |
| Operating Temperature: | -20~60°C | Power Supply: | DC 12V/24V/48V |
| Processor: | Intel Core I7/i5/i3/Celeron | Storage: | SATA/mSATA/SSD |
| Type: | Industrial Rackmount PC | ||
| Highlight: | 4U Industrial Rack Mount Computer,IPC Industrial Rack Mount Computer,4U IPC Industrial Computer |
||
Product Description
HLZ-Z610 Industrial Rackmount PC Upper Rack 4U IPC 7 Or 14 Expansion Slots I3 I5 I7 Series CPUs
Detailed Product Description
| Name: | Industrial Rackmount PC | Adapt Motherboard: | All ATX And Micro ATX Motherboards Of Yanyue |
|---|---|---|---|
| CPU/GPU: | Intel I5 6500 Dual Core 4-thread 3.3G Hz | Memory: | 4G DDR4 |
| Hard Disk: | 1T Mechanical Hard Disk | Installation Mode: | 19 Inch Rack |
| High Light: |
industrial rackmount computer,2u rack mount computer |
||
HLZ-Z610 19 "standard upper rack 4U IPC, 7 or 14 expansion slots, supporting I3/I5/I7 series CPUs of each generation
Features:
■ Heat dissipation, dust prevention and earthquake resistance
■ Support all ATX / micro ATX mainboards of Yanyue
■ 7 expansion slots
■ 6 additional strings and 2 parallel can be led out at the back
■ Replace and clean the dust screen without shutting down
■ Flexible configuration, flexible configuration of CPU, memory and hard disk according to customer requirements
| Specification parameter | Optional configuration | |||||||
| Chassis | All steel structure, color industrial grey | Optional black | ||||||
| Front | Inside the door: power switch, power / HDD indicator light, 2usb2.0; 1 large fan, which can be replaced and cleaned without shutdown | Customer logo or other requirements can be customized | ||||||
| Back | PS / 2 power supply; large hole of main board; 7 expansion slot; additional 6 DB9; 2 DB25 | 14 slots, support full-length card motherboard, support 12 PCI extensions | ||||||
| Hard disk rack | Two 5.25 "+ two 3.5" seismic hard disk racks | Optional optical drive, supporting 4 hard disks | ||||||
| Adapter motherboard | All ATX and micro ATX motherboards of Yanyue | All full length card motherboards of Yanyue | ||||||
| CPU/GPU | Intel i5 6500 dual core 4-thread 3.3G Hz | Support all generations of Celeron, Pentium, I3, i5, i7 series CPUs | ||||||
| Memory | 4G DDR4 | Optional 2G/8g/16g/32g memory | ||||||
| Hard disk | 1T mechanical hard disk | Optional 32g/64g/256g/512g/1t solid state drive; support 3.5-inch mechanical hard disk | ||||||
| Interface | AC input; PS / 2 kb / MS; 4USB; 2rj45 (Gigabit); VGA; DVI, audio output; MIC input; 6com (standard) | All interfaces on the outgoing chassis can be selected. | ||||||
| Extend | PCIEx16； PCIEx4； PCIEx1； 4PCI | Depending on the expansion slot on the system board | ||||||
| Size | Excluding handle:482*450*178 | Net/gross weight | 9/10KG | |||||
| Industrial power supply | 300W PS/2 Industrial Power | Other higher power options | ||||||
| Installation mode | 19 inch rack | |||||||
| Work and Environment | ||||||||
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
| Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||
