4U 19 Inch Rack Mount Rugged Industrial Server Support Windows / Linux system
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | \ |
| Model Number: | Z610-03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Camera: | 2MP HD Camera | Connectivity: | Wi-Fi, Bluetooth |
|---|---|---|---|
| Graphics: | Intel UHD Graphics 620 | Keyboard: | Backlit Keyboard |
| Material: | Aluminum Alloy | Memory: | 16GB DDR4 |
| Operating System: | Windows 10 Pro | Ports: | 2x USB 3.0, HDMI, RJ45, Audio Jack |
| Processor: | Intel E5 2603V4 | Product Name: | Industrial Rugged Notebook |
| Storage: | 512GB SSD+2TB HDD | Weight: | 20 Kg |
| Highlight: | 4U Rugged Industrial Server,19 Inch Rugged Industrial Server,Windows Rugged Rack Mount Server |
||
Product Description
4U 19 Inch Rack Rugged Server
Product introduction
Hanlizer's 19 -inch reinforced server adopts Intel® industrial control solutions, and comes standard with dual -channel Xeon E5-2603v4 processors, 16G memory, and 8 TB mechanical hard drives.
This model has the characteristics of powerful performance and stable operation; it has complete functions and interfaces, supports Windows/Linux system, and is installed on the shelf as standard , and has a wide range of applications.
Product Features
● Intel® Dual Socket Xeon Processor;
● Aluminum alloy CNC machining chassis;
● Support RAID0 , 1 , 5 , 10 disk arrays;
● Onboard VGA display output;
● Aviation socket type power interface, network port and USB ;
● Eight PCI-E3.0 extensions;
● Support Windows/Linux system;
● Standard rack installation;
Product Specifications
| Host | |
| Intel ® Xeon E5-2603 v4 ×2 (support I3/I5/I7 ) | |
| ECC DDR4 16GB ( 512GB supported ) | |
| 8TB SATA HDD (capacity optional) | |
| I/O | |
| VGA×1 | |
| USB × 4 (including aviation socket × 1 ) | |
| RJ45 1000M ×2 (including medium aviation socket ×1 ) | |
| SATA III ×10 | |
| PCI-E 3.0 X16×3 | |
| PCI-E 3.0 x8 x3 | |
| 3.5mm AUDIO×1 | |
| 3.5mm MIC×1 | |
| ATX 220V550W (aviation socket) | |
| Install | |
| 0~50 ℃, 5% ~ 95% non-condensing state | |
| -20~60 ℃, 5% ~ 95 % non-condensing state | |
| 220V | |
| 400W | |
| About 15kg | |

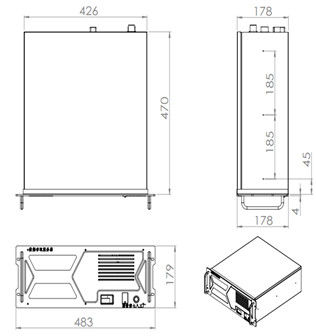

| 483(W)×470(D)×179(H)mm | |
| on the shelf | |
