13.3" Handheld Industrial Rugged Notebook Panel PC Intel i7- 4650U Optional I3 / I5
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | \ |
| Model Number: | E133R-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Battery: | Li-ion Battery | Display: | 13.3 Inch FHD |
|---|---|---|---|
| Graphics: | Intel UHD Graphics 620 | Humidity Range: | 5% To 95% RH |
| IP Rating: | IP65 | Memory: | 8GB DDR4 |
| Network: | 802.11ac/a/b/g/n | Operating System: | Windows 10 Pro |
| Processor: | Intel Core I7-4650U | Product Name: | Industrial Rugged Notebook |
| Shock Resistance: | MIL-STD-810G | Storage: | 256GB SSD |
| Temperature Range: | -20°C To 60°C | Weight: | 3.2kg |
| Highlight: | 13.3" Industrial Rugged Notebook,Handheld Industrial Rugged Notebook,13.3" Handheld Rugged PC |
||
Product Description
13.3" Handheld Industrial Panel PC RK3399 Six-Core 2.0GHz Processor
Product Features
● RK3399 six-core 2.0GHz processor ;
● Aluminum alloy material , anodized surface treatment process;
● 16:9 widescreen, multi-touch screen;
● Optional Wi-Fi/ Bluetooth /GPS/4G function;
● The battery supports 6 hours of battery life;
● The back bracket can be hand-held or seated.
Product introduction
Hanlizer HLZ-E133R-01 adopts ARM® RK3399 six-core 2.0GHz processor, 4G memory, 16GB storage and multi-touch display.
This model has the characteristics of beautiful appearance, easy portability and flexible customization; it has complete functions and interfaces, supports Windows/Linux systems, and is suitable for mobile operations.
Product Specifications
| Host | |
| Intel ® i7- 4650U ( Optional I3 /I5) | |
| DDR3L 8 GB ( optional 4G/16G) | |
| 512GB mSATA SSD (capacity optional) | |
| Screen | |
| 13.3” | |
| 1366 × 768 | |
| 300 cd/m² | |
| 400 : 1 | |
| I/O | |
| HDMI×1 | |
| VGA×1 | |
| USB3.0×2 , USB2.0×2 | |
| RJ45 1000M ×1 | |
| RS232 DB9 ×1 | |
| 3.5mm AUDIO×1 , 3.5mm MIC×1 | |
| 12V Φ 12mm aviation socket | |
| Bluetooth Wi-Fi , 4G optional | |
| Install | |
| 0~50 ℃, 5% ~ 95% non-condensing state | |
| -20~60 ℃, 5% ~ 95 % non-condensing state | |
| GB/T 9813.4-2017 | |
| 220V to DC19V4.5A adapter | |
| 40W | |
| Net weight about 2Kg , gross weight 3.2Kg | |

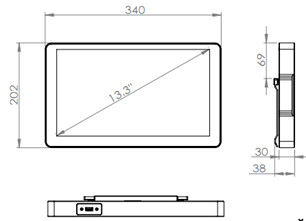

| 340(W)×202(D)×30~38(H)mm | |
