IP65 15" Portable Industrial Rugged Notebook Waterproof Anti Vibration
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | / |
| Model Number: | HLZ-M150N |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Battery: | 6-cell Li-ion | Connectivity: | Wi-Fi, Bluetooth, 4G LTE |
|---|---|---|---|
| Display: | 15 Inch FHD | Graphics: | Intel UHD Graphics 620 |
| IP Rating: | IP65 | Material: | Aluminum Alloy |
| Memory: | 16GB DDR4 | Operating System: | Windows 10 |
| Ports: | USB 3.0, USB-C, HDMI, RJ45 | Processor: | Intel Core I7 |
| Product Name: | Industrial Rugged Notebook | Shockproof: | MIL-STD-810G |
| Storage: | 512GB SSD | ||
| Highlight: | IP65 Industrial Rugged Notebook,15" Industrial Rugged Notebook,Portable Rugged PC Waterproof |
||
Product Description

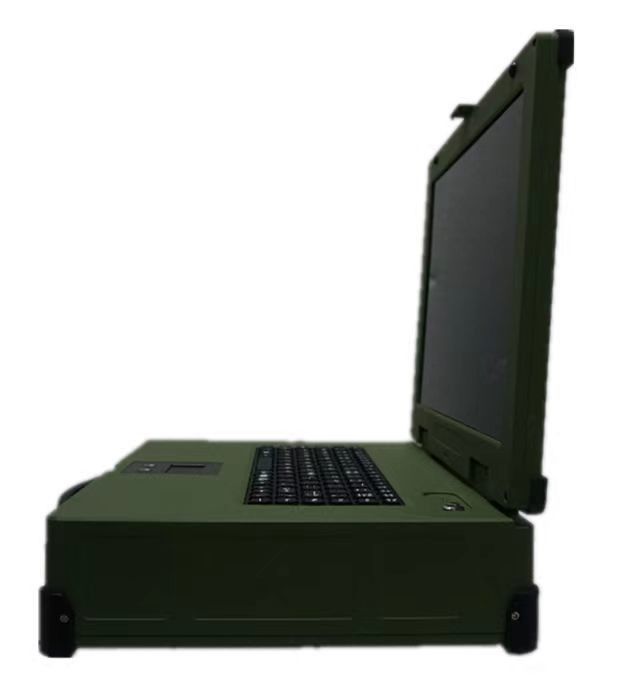

15" Portable Industrial Computer (Ruggedized)
Overview:
The whole machine complies with IP65 protection level; It integrates all kinds of anti-harsh environment characteristics, including toughness, waterproof, dustproof, anti-vibration, anti-impact, portable, electromagnetic compatibility and other indicators. The products strictly comply with the national military standard GJB150A, GJB151A, GJB322A and other industry standards to ensure that the products can meet the needs of individual combat, military equipment testing, polar scientific expeditions and other harsh environments.
Peculiarity:
3rd generation Intel ® Core ™ i7 vPro™ processor
On-board 4G memory with support up to 12G
The whole machine IP65 protection level
Meet the GJB150A, US military standard MIL-STD-810G test requirements
Passed the GJB-151A Army Ground Five EMC Test
Specifications:
Display: 15 "sunlight visual LCD display
Resolution: 1024x768
Processor: Intel®Core™ i7-3517U 1.9GHz (Max. 3.0GHZ)/ 4MB L2 Cache
Memory: 4GB DDR3 memory, expandable up to 16GB
Storage: 2.5-inch SATA SSDS or Msata SSD
Power: AC power adapter: Input AC110~240V, output DC19V@90W DC power adapter: output DC19V
battery: 9900mAH intelligent lithium battery
The operating system supports: Windows7 or later
USB: 2 *USB2.0 interface (navigation), 2*USB3.0 interface
COM: 4*RS232
LAN: 2*RJ-45 Network port (one of which is a jack)
Audio: 1*Line-out/In
Display: 1*HDMI
Navigation: 1*GPS
Power: 1* Power interface (navigation)
Vibration resistance:
meets: GJB367A-2001/GJB322A-98 sinusoidal vibration test
Working: X/Y/Z triaxial, 5Hz-200Hz/1.0g (1.5g optional)
Off: X/Y/Z triaxial, frequency 10 ~ 23Hz Acceleration 1.0G
frequency: 23 ~ 52Hz amplitude 0.44mm
Frequency: 52 ~ 2000Hz acceleration 5G
Meet : GJB150A/MIL-STD-810G random vibration test
work: X/Y/Z triaxial, 5-500Hz, 1.90Grms
Impact resistance:
Meets: GJB367A-2001/GJB322A-98/GJB150A/MIL-STD-810G
Working: Half Sine wave,15G,11ms
Off : Half Sine wave,50G,11ms
The drop: meets GJB367A-2001/GJB322A-98/GJB150A/MIL-STD-810G
Electromagnetic compatibility: meets the GJB-151A Army Penta /MIL-STD-461F test requirements
IP Protection Level: IP65 protection level of the device
Operating temperature: -20℃ ~ 55℃
Storage temperature: -20 ° C to 60 ° C
Working humidity: <90% @40℃, no condensation

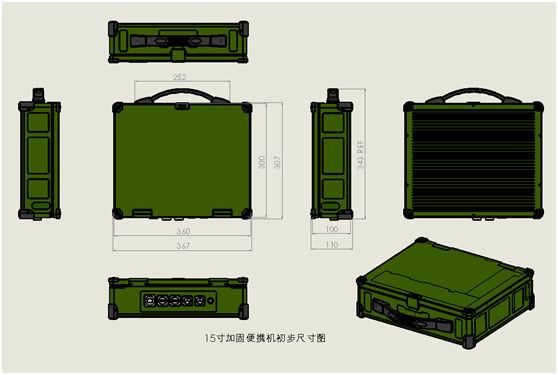

Body size: 367mm (L)* 307mm (W)* 110mm (H)
Keyboard: Optional plastic keyboard/silicone keyboard
Material : Fan-less design, heat dissipation through a closed metal housing
Weight: 6.9Kg
Color: Black or Green
