HLZ-X170N 17 Inch Industrial Panel Monitor Display Embedded Wall Mounted
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | CE FCC |
| Model Number: | HLZ-X170N |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Brightness: | 300 Nits | Contrast Ratio: | 800:1 |
|---|---|---|---|
| Display Type: | LCD | Humidity: | 10%~90% |
| Interface: | VGA | Operating Temperature: | -00℃~60℃ |
| Power Supply: | DC 12V | Resolution: | 1024x768/1920x1080 |
| Response Time: | 5ms | Screen Size: | 17 Inch |
| Storage Temperature: | -20℃~70℃ | Touch Screen Technology: | Resistive/Capacitive/Infrared |
| Viewing Angle: | 80/80/80/80 | Warranty: | 1 Year |
| Highlight: | 17 Inch Industrial Panel Monitor,Industrial Panel Monitor Embedded,Industrial Panel Display Embedded |
||
Product Description
HLZ-X170N 17 "Industrial Display/Industrial Panel /Embedded/ Wall Mounted
| Name: | Industrial Monitor | Touch Screen: | / |
| Interface: | DC12V(Aviation Plug)； VGA ； USB | Size: | 394mm(length)* 324mm(width)* 46mm(thickness) |
| Industrial Power Supply: | 12V@5A Industrial Adapter | Working Temperature: | 0～60℃ |
| High Light: |
industrial display , industrial panel |
||
HLZ-X170Z 17" industrial display
Features:
■ Aluminum alloy sandblasted panel
■ Aviation plug power input
■ Various installation options
| Specification parameters | Optional configuration | ||||
| Front panel | Aluminum alloy panel,silvery；OSD menu | Optional black or other colors | |||
| Back chassis | 1.2mm Steel plate, Silver； | Optional industrial black or other colours | |||
| LCD screen | 17 "TFT, LED backlight; resolution: 1280 * 1024; lattice: 0.297 * 0.297; maximum color: 16.2M; brightness: 300cd / ㎡; contrast: 800:1; response speed: 35ms; MTBF: 50000h viewing angle: (+ 85° - 85°) (+85 ° -85 °); | ||||
| Touch screen | / | Customizable capacitor screen | |||
| Interface | DC12V(Aviation plug)； VGA； USB | ||||

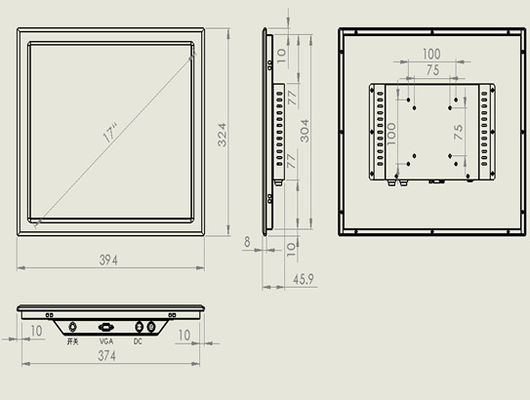

| Size | 394mm(length)* 324mm(width)* 46mm(thickness) | Weight | 4.5/5KG | ||
| Industrial Power Supply | 12V@5A industrial adapter | ||||

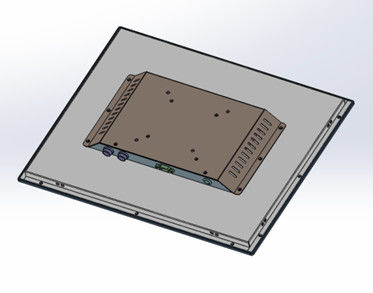

| Installation mode | Embedded screw installation; Embedded hook installation; VISA wall mounting installation | ||||
| Work and Environment | |||||
| Working temperature | 0～60℃ | Storage temperature | -20～70℃ | Environmental humidity | 0~90% air humidity, no condensation |
| IP Level | / | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | ||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | ||
