PC Micro ATX Lga 1151 Motherboard Ddr4 Intel H170 6th / 7th I3 I5 I7 CPU
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | CE, FCC |
| Model Number: | MATX-P6662-H170 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Chipset: | Intel H170 | Expansion Slots: | 2x PCI-Express X16, 3x PCI-Express X1 |
|---|---|---|---|
| Form Factor: | Micro ATX | Internal USB Ports: | 2x USB 3.0, 2x USB 2.0 |
| Max Memory: | 64GB | Memory Slots: | 4 |
| Onboard Audio: | Realtek ALC1220 | Onboard LAN: | Intel I219V |
| Power Connectors: | 1x 24-pin ATX, 1x 8-pin ATX | Product Type: | Micro ATX Motherboard |
| RAID Support: | Yes | Rear USB Ports: | 6x USB 3.1, 2x USB 2.0 |
| Socket: | LGA 1151 | Storage: | 6x SATA 6Gb/s |
| Video Outputs: | DVI, HDMI, DisplayPort | ||
| Highlight: | PC Lga 1151 Motherboard Ddr4,Micro ATX Lga 1151 Motherboard Ddr4 |
||
Product Description
| Chipset: | H170 High-speed Chipset | CPU: | Intel 6th And 7th I3-i5-i7 |
|---|---|---|---|
| Memory: | 4*DDR4 Memory Socket | Ethernet: | 1 * Intel I211AT + 1* Intel I219 |
| Video: | Support VGA+HDMI+DP | COM: | 5*RS-232 1*RS232/RS422/485 |
| Expansion Slot: | 1*PCIE_X16 , 2*PCIE_X4 , 1*PCIE_X1 | ||
| High Light: | |||
|
LGA1151 Industrial PC Motherboard
I7 CPU Industrial PC Motherboard
LGA1151 mainboard pc core i3 |
|||
LGA1151 industrial pc motherboard support Intel® 6th /7th i3 i5 i7 CPU with PCIE_X16 2 PCIE_X4 dual LAN support TPM
Key features

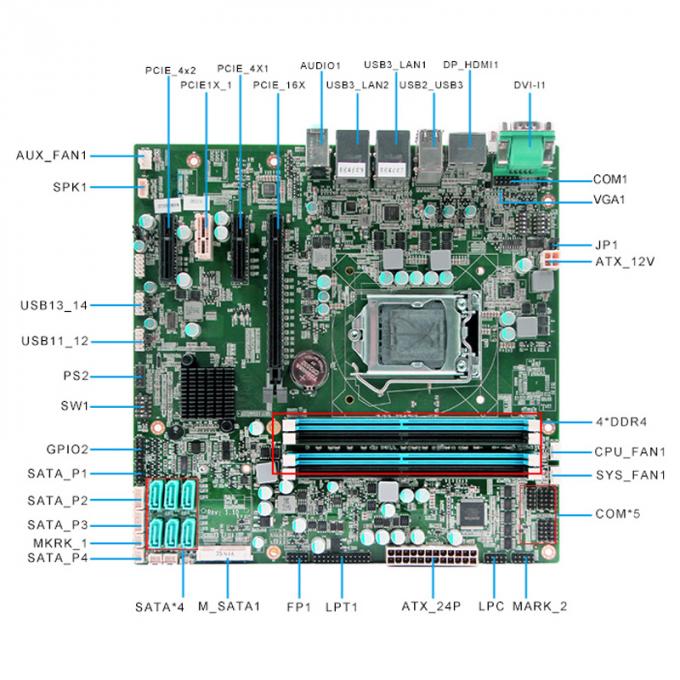

The Model ATX-P6662A-H170 adapt H110/H170 high-speed chipset, support Intel6th and 7th i3-i5-i7 CPU with 4*DDR4 ram socket, 2*gigabit LAN support VGA, HDMI, DP, DVI display, with 1*PCIE_X16 , 2*PCIE_X4 , 1*PCIE_X1
Specifications
| Processor | CPU | Support LGA1151 socket Intel6th and 7th i3-i5-i7 CPU |
| CPU Package | LGA1151 | |
| Chipset | H170 high-speed chipset | |
| BIOS | EFI BIOS | |
| Memory | Technology framework | Dual channel DDR4 2133/2400MHz |
| socket | 4*DDR4 ram socket , | |
| Video | Graphic controller | Intel HD Graphics(G4400graphic card );(According to CPU model) |
| VGA | VGA max support resolution 2048x1536 | |
| HDMI | max support resolution(HDMI1.4)4096*2304,Support 4K Display | |
| DP | max support resolution4096*2304 | |
| DVI | max support resolution 4096*2304 | |
| Three display support | Support VGA+HDMI+DP VGA+HDMI+DVI HDMI+DP+DVIThree-screen sync or asynchronous display | |
| I/O panel | Ports |
1*DP 1*HDMI 1*DVI 2*LAN 6*USB3.0 1*MIC-OUT/LINE-OUT/LINE IN |
| Internet | Controller |
1 * Intel I211AT Gigabit Ethernet 1 * Intel I219 Gigabit Ethernet (H110 chipset for an Intel I219 card) |
| Audio | Controller | Realtek HD ALC289 audio decoding(LINE-OUT+MIC_IN+LINE-IN) |
| Super I/O | Controller | NCT6106D |
| Hardware control | Watchdog & Timer | 0~255 timer (Watchdog code optional) |
| Cooler | Aluminum has a fan heat sink (supports automatic and manual fan speed adjustment) | |
| Input/Output Interface | USB |
6 * USB3.0 compatible USB2.0 / 1.1 8 * USB2.0, maximum support +5 V / 1.5A (H110 for the four USB3.0, 6 USB2.0) |
| Com |
5*RS-232 1*RS232/RS422/485 optional,RS485Support automatic flow control |
|
| PS/2 | 1*PS/2 Pin Port | |
| GPIO | 2 * 8 bits, providing routines, freely defined input / output, 3.3V @ 24mA level | |
| Storage | SATA | 4 * standard SATAIII interface, the maximum transfer rate of 6Gb / s (H110 chipset for the two SATA) |
| M-SATA | 1 * Mini-PCIe M-SATA Scoket, support SANDISK protocol, the maximum transfer rate of 6gb / s | |
| Power supply | Power Type | ATX power supply |
| Power Consumption | 80W | |
| Working temperature | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0%~90% (non-condensing) | |
| Storage humidity | 0%~90% (non-condensing) | |

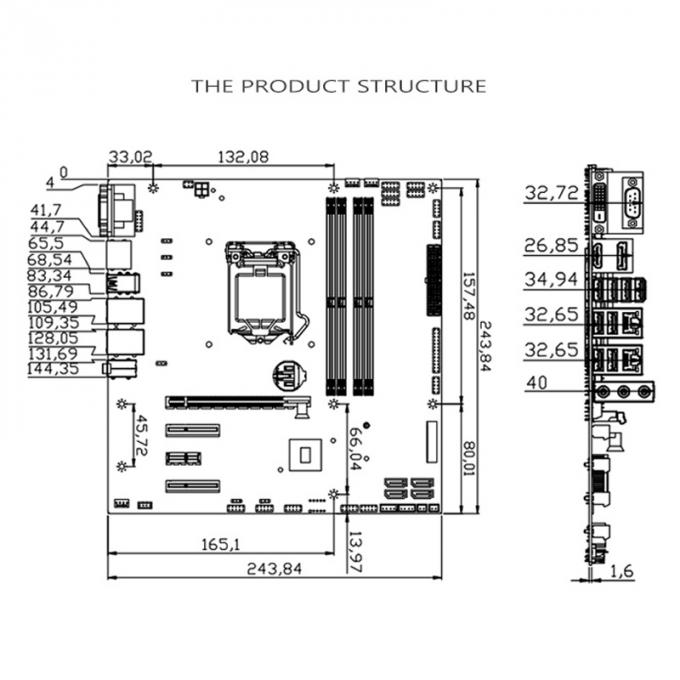

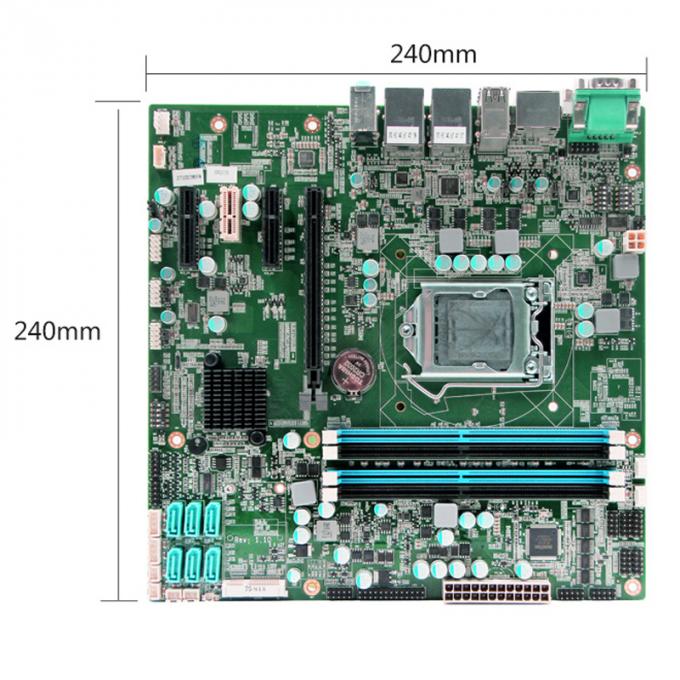

| size | Size | 240 x 240 mm |
| weight | 0.5KG |
