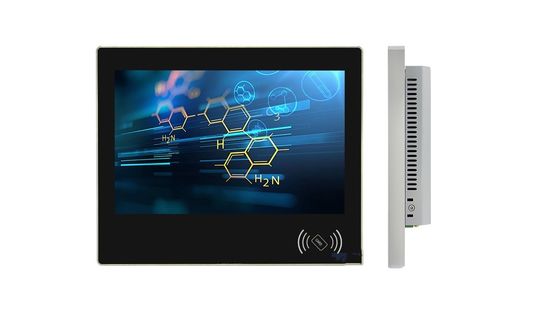

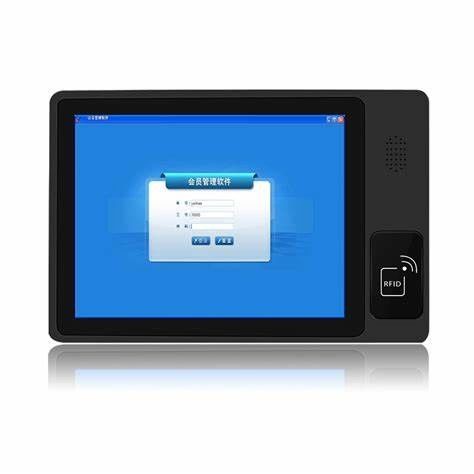

18.5" Touch Industrial Panel PC touch screen and IC card reader
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | \ |
| Model Number: | P185R-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Display: | 18.5 | Expansion Slots: | Mini-PCIe |
|---|---|---|---|
| Humidity: | 5%~95% RH | I/O Ports: | USB/LAN/HDMI/VGA/COM |
| Memory: | DDR3/DDR4 | Mounting: | Panel/VESA |
| OS: | Windows/Linux | Power Supply: | DC/AC |
| Processor: | Intel Atom/Celeron/Core I3/i5/i7 | Product Name: | Industrial Touch Panel PC |
| Protection Level: | IP65/IP66/IP67/IP68 | Storage: | SATA/SSD |
| Touch Screen: | Resistive/Capacitive | Working Temperature: | -20℃~60℃ |
Product Description
Product introduction
Hanlizer 18.5" tablet PC adopts Intel® industrial control solution, standard Celeron J1900 processor, 4G memory, 128GB solid state drive, touch screen and IC card reader.
This model has the characteristics of beauty, reliability and durability; it has complete functions and interfaces, supports Windows/Linux systems, and can be installed on the wall or embedded in a wide range of applications.
Product Features
●Intel® industrial control solutions;
●Aluminum alloy anodizing process;
●support touch;
●Support IC card swiping;
●Dual Gigabit Ethernet ports, dual display ports, multiple USB , serial ports
●Scalable Wi-Fi/ Bluetooth /4G communication module;
●Support Windows/Linux system;
Optional wall / flush installation
ProducProduct Specificationst Specifications
| Host | |
| Intel ® J1900 2.0GHz ( I3/I5/I7 optional ) | |
| DDR3L 4GB | |
| 128GB mSATA SSD | |
| Screen | |
| 18.5" | |
| 1920 ×1080 | |
| 350 cd/m² | |
| Capacitive touch (optional resistive touch) | |
| I/O | |
| HDMI×1 | |
| VGA×1 (optional) | |
| USB3.0×1 , USB2.0×3 | |
| RJ45 1000M ×2 | |
| RS232 DB9 × 5 (optional RS485 × 1 ) | |
| 3.5mm AUDIO×1 | |
| 3.5mm MIC×1 | |
| Install | |
| -10~60 ℃, 5% ~ 95% non-condensing state | |
| -20~60 ℃, 5% ~ 95 % non-condensing state | |
| 220V to DC12V5A Φ 12mm aerial plug | |
| 50W | |
| about 10kg | |
| 531×281×67mm | |
| black / silver (optional) | |
| Wall Mount ( VESA bracket sold separately) / Recessed | |
