350 Cd/M2 18.5" Industrial Touch Panel PC IC Card Reader Wall / Flush Installation
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | \ |
| Model Number: | P185R-05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Brightness: | 250-500cd/m2 | CPU: | Intel Atom/Celeron/Core I3/i5/i7 |
|---|---|---|---|
| Contrast: | 800:1 | Display: | LCD/LED/TFT |
| I/O Ports: | USB/RS232/VGA/HDMI/Ethernet | Memory: | 2GB-8GB |
| Mounting: | Wall/VESA/Panel | Operating System: | Windows/Linux |
| Power Supply: | DC 12V/24V | Resolution: | 1920x1080 |
| Size: | 10.4-21.5 Inch | Storage: | SSD/HDD |
| Touch Screen: | Capacitive/Resistive | Type: | Industrial Touch Panel PC |
| Viewing Angle: | 178° | ||
| Highlight: | 350 Cd/M2 Industrial Touch Panel PC,18.5" Industrial Touch Panel PC |
||
Product Description

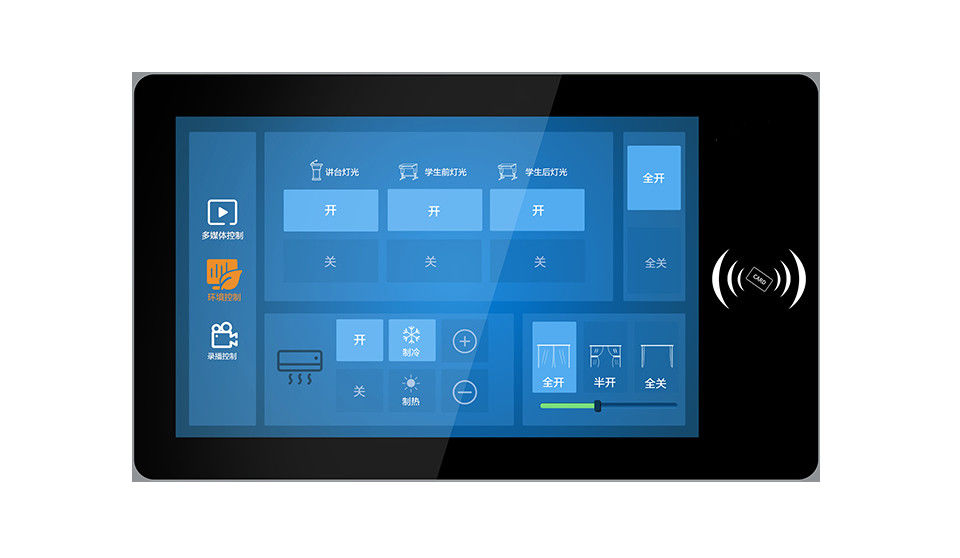

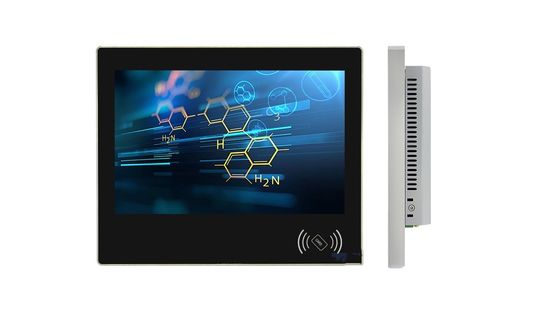

RK3399 18.5" Touch Industrial Panel PC Touch Screen And IC Card Reader
Product introduction
Hanlizer 18.5" tablet PC adopts Intel® industrial control solution, standard ARM RK3399 processor, 4G memory, 64GB solid state drive, touch screen and IC card reader.
This model has the characteristics of beauty, reliability and durability; it has complete functions and interfaces, supports Windows/Linux systems, and can be installed on the wall or embedded in a wide range of applications.
Product Features
● Aluminum alloy anodizing process;
● support touch;
● Support IC card swiping;
● Dual Gigabit Ethernet ports, dual display ports, multiple USB , serial ports
● Scalable Wi-Fi/ Bluetooth /4G communication module;
● Support Windows/Linux system;
● Optional wall / flush installation;
Product Specifications
| Host | |
| ARM RK3399 | |
| 4GB | |
| 64GB | |
| Screen | |
| 18.5" | |
| 1920 ×1080 | |
| 350 cd/m² | |
| Capacitive touch (optional resistive touch) | |
| I/O | |
| HDMI×1 | |
| VGA×1 (optional) | |
| USB3.0×1 , USB2.0×3 | |
| RJ45 1000M ×2 | |
| RS232 DB9 × 5 (optional RS485 × 1 ) | |
| 3.5mm AUDIO×1 | |
| 3.5mm MIC×1 | |
| Install | |
| -10~60 ℃, 5% ~ 95% non-condensing state | |
| -20~60 ℃, 5% ~ 95 % non-condensing state | |
| 220V to DC12V5A Φ 12mm aerial plug | |
| 50W | |
| about 10kg | |
| 531×281×67mm | |
| black / silver (optional) | |
| Wall Mount ( VESA bracket sold separately) / Recessed | |
