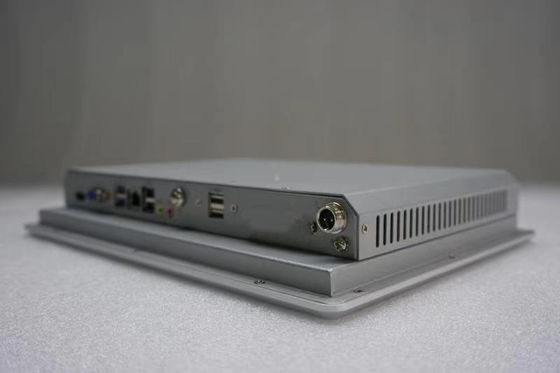

Wide Temperature Industrial Touch Panel PC 15" Touchscreen Monitor i7/i5/i3
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | \ |
| Model Number: | P150Z-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Dimension: | Varies | Display: | 15”/17”/19”/21.5”/24”/27” LCD |
|---|---|---|---|
| Graphics: | Intel HD Graphics | I/O Interface: | 2 X USB 3.0, 4 X USB 2.0, 2 X COM, 1 X LAN, 1 X VGA, 1 X HDMI |
| Memory: | 2 X DDR3 SO-DIMM, Up To 16GB | Mounting: | VESA/Panel Mount |
| Operating Temperature: | 0°C~50°C | Power Supply: | DC 12V/19V |
| Processor: | Intel Core I7/i5/i3 | Product Name: | Industrial Touch Panel PC |
| Storage: | 1 X 2.5” SATA HDD/SSD, 1 X MSATA | Touch Screen: | 5-wire Resistive/Capacitive/Infrared |
| Highlight: | Industrial Touch Panel PC 15",Wide Temperature Industrial Touch Panel PC,15" Touchscreen Monitor Industrial |
||
Product Description
15" Touch Panel PC With Wide Temperature And Wide I3/I5/I7 Applicable To -30~70 ℃ Wide Temperature Conditions;
Product introduction
Hanlizer 15" tablet PC adopts Intel® industrial control solution, standard I5 4300U processor, 8G memory, 128GB solid state drive and 15" resistive touch display.
This model has the characteristics of good weather resistance and stable operation; it has complete functions and interfaces, supports Windows7 system, embedded installation, and has a wide range of applications
Product Features
● Applicable to -30~70 ℃ wide temperature conditions;
● The panel supports IP65 level protection;
● Compact fanless design;
● Aluminum alloy material, anodizing process;
● 4 : 3 touch screen;
● Dual Gigabit Ethernet ports, dual display ports, USB , serial ports;
● Scalable Wi-Fi/ Bluetooth /4G communication module;
● Support Windows7~10/Linux system;
● Embedded installation.
Product Specifications
| Host | |
| Intel®I5 4300U (Optional I3 /I5/I7 ) | |
| DDR3L 8GB | |
| 128GB mSATA SSD | |
| Screen | |
| 15” | |
| 304(W)×228(H) mm | |
| 1024 x 768 , 4 : 3 | |
| 350 cd/m² | |
| 700 : 1 | |
| 80/80/80/80 | |
| Resistive Touch / Capacitive Touch | |
| I/O | |
| HDMI×1 ( VGA×1 can be added ) | |
| USB3.0×1 , USB2.0×3 | |
| RJ45 1000M ×2 | |
| RS232 DB9 ×1 (optional up to 6 ) | |
| PCMCIA×1 | |
| 3.5mm AUDIO×1 , MIC×1 | |
| DC9~36V , typical value 24V | |
| Install | |
| -30~70 ℃, 5% ~ 95% non-condensing state | |
| -40~80 ℃, 5% ~ 95 % non-condensing state | |
| ≤ 4000 meters | |
| IP65 (upgradeable) | |
| GB9254-1998 , Grade A | |
| DC9~36V | |
| 50W | |
| about 9kg | |
| 372(W)×279(H)×65(D)mm | |
| black / silver (optional) | |
| embedded / Wall mount ( VESA bracket sold separately) | |
