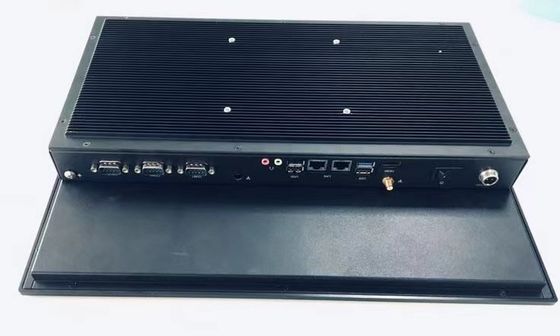

Fanless Capacitive 15 Inch Touch Screen Industrial Panel PC Monitor Dustproof
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | \ |
| Model Number: | P150R-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| CPU: | Intel Core | Communication Interface: | Ethernet/Wi-Fi/4G |
|---|---|---|---|
| Display Resolution: | 1024 X 768 | Display Size: | 15 Inch |
| Graphics: | Intel HD Graphics 620 | IP Rating: | IP65 |
| Mounting: | VESA/Wall/Desktop | Operating System: | Windows 10 Pro |
| Power Supply: | DC 12V/24V | Product Name: | Industrial Touch Panel PC |
| RAM: | 8GB DDR4 | Storage: | 256GB SSD |
| Touch Screen: | Yes | Warranty: | 1 Year |
| Highlight: | Fanless Touch Screen Industrial Panel PC,Capacitive Touch Screen Industrial Panel PC,15 Inch Industrial Monitor Dustproof |
||
Product Description
15" Capacitive Touch Industrial Panel PC Fanless Structure Design, Quiet And Dustproof
Product Features
● Intel® industrial control solutions;
● Fanless structure design, quiet and dustproof;
● Aluminum alloy panel , surface anodizing process;
● Dual Gigabit Ethernet ports, dual display ports, multiple USB , serial ports
● Scalable Wi-Fi/ Bluetooth /4G communication module;
● Support Windows/Linux system ;
Product introduction
Hanlizer 15 -inch industrial panel PC adopts Intel ® industrial control solution, with low, medium and high processor, 2~16G memory , 32~1TB solid state drive optional , fanless silent design , stable performance and flexible interface and other characteristics.
This model supports 9~36V wide voltage DC input, supports embedded or VASE bracket installation , is widely used and easy to maintain
Product Specifications
| Basic parameters | |
| Intel® Core 4/6/7 generation optional _ | |
| 4GB DDR3L 1600 (optional 2~16G ) | |
| 64GB mSATA SSD (capacity optional) | |
| 305(W)×229(H) mm | |
| 1024 x 768 , 4 : 3 | |
| 350 cd/m² | |
| 700 : 1 | |
| 80/80/80/80 | |
| Capacitive multi-touch screen | |
| interface | |
| HDMI×1 (optionally add VGA×1 ) | |
| USB3.0×1 , USB2.0×3~4 | |
| RJ45 1000M ×2 | |
| RS485×1 , RS232×1~5 | |
| 3.5mm AUDIO×1 , 3.5mmMIC×1 | |
| Air plug DC12V (optional 9~36V wide voltage input) | |
| Φ 12mm metal light reset switch | |
| Applicable environment | |
| -10~60 ℃, 5% ~ 95% non-condensing state | |
| -20~70 ℃, 5% ~ 95 % non-condensing state | |
| ≤ 4000 meters | |
| ANSI/ESDSTM5.1-2001 1500V | |
| GB9254-1998 , Grade A | |
| DC12V | |
| 50W | |
| Install | |
| about 5kg | |
| 372(W)×288(H)×70(D)mm | |
| embedded / Wall mount ( VESA bracket sold separately) | |
