12.1" Fanless Industrial Display Monitors Aluminum Alloy Portable Industrial Computer
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | CE, FCC |
| Model Number: | M121Z-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Brightness: | 300 Cd/m2 | Contrast Ratio: | 1000:1 |
|---|---|---|---|
| Display Colors: | 16.7 Million | Display Size: | 12.1 Inches |
| Display Type: | LCD | Input Connectors: | VGA, HDMI |
| Mount Type: | Wall Mountable | Power Consumption: | 25 W |
| Resolution: | 1024 X 768 | Response Time: | 5 Ms |
| Warranty: | 3 Years | ||
| Highlight: | 12.1" Industrial Display Monitors,Fanless Industrial Display Monitors,Aluminum Alloy Portable Industrial Computer |
||
Product Description
12.1" Portable Industrial Computer
Product Features
● Intel® industrial control solutions;
● Fanless structure design, quiet and dustproof;
● Aluminum alloy material , surface anodizing process;
● Dual Gigabit Ethernet ports, dual display ports, multiple USB , serial ports
● Scalable Wi-Fi/ Bluetooth /4G communication module;
● Support Windows/Linux system;
● Optional wide pressure, wide temperature environment applicable.
Product introduction
Hanlizer 12.1" portable industrial computer adopts Intel ® industrial control solution, optional J1900~ Core 7th generation processor, 2~16G memory , 32~1TB solid state drive . This model is fanless , quiet and dustproof, and has an interface Complete , stable , reliable and durable features.
This model supports wide pressure and wide temperature environment, optional embedded or VASE bracket installation, wide application and easy maintenance .
Product Specifications
| Basic parameters | |
| Intel ® J1900 / Core 4/6/7 generation optional | |
| 4GB DDR3L 1600 (optional 2~16G ) | |
| 64GB mSATA SSD (capacity optional) | |
| 246(W)×185(H) mm | |
| 1024 x 768 , 4 : 3 | |
| 500 cd/m² | |
| 700 : 1 | |
| 80/80/70/70 | |
| Resistive flat-screen touch screen (optional capacitive touch screen) | |
| interface | |
| HDMI×1 (optionally add VGA×1 ) | |
| USB3.0/USB2.0 ( 1~5 ) | |
| RJ45 1000M (single / dual network port optional) | |
| RS232/422/485 ( 1~6 optional) | |
| 3.5mm AUDIO×1 , 3.5mmMIC×1 | |
| Air plug DC12V (optional 9~36V wide voltage input) | |
| Φ 12mm metal light reset switch | |
| Applicable environment | |
| -10~60 ℃, 5% ~ 95% non-condensing state | |
| -20~70 ℃, 5% ~ 95 % non-condensing state | |
| ≤ 4000 meters | |
| External screen part IP65 | |
| ANSI/ESDSTM5.1-2001 1500V | |
| GB9254-1998 , Grade A | |
| DC12V | |
| 30W | |
| Install | |
| about 3kg | |

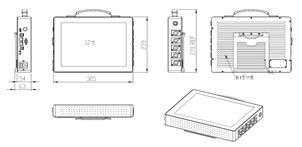

| 305(W)×270(H)×63(D)mm | |
| Handheld or desktop | |
