Intel H110 Industrial PC Mainboard Ddr4 6 Com 3 Lan 1×PCIE X16 2×PCIE X4 4×PCI
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | CE FCC |
| Model Number: | ATX-H110 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| CPU Socket: | LGA 1151 | Chipset: | Intel H110 |
|---|---|---|---|
| Expansion Slots: | 1 X PCI Express X16 Slot, 1 X PCI Express X4 Slot | Form Factor: | ATX |
| Internal I/O Connectors: | 1 X 24-pin ATX Power Connector, 1 X 4-pin ATX 12V Power Connector, 4 X SATA 6Gb/s Connectors, 1 X CPU Fan Header, 1 X System Fan Header, 1 X Front Panel Header, 1 X Front Panel Audio Header, 1 X Serial Port Header, 1 X TPM Header | Max Memory: | 32GB |
| Memory Slots: | 2 | Memory Type: | DDR4 |
| Onboard Audio: | Realtek ALC887 | Onboard LAN: | Realtek RTL8111H |
| Onboard Video: | No | RAID Support: | Yes |
| Rear Panel Ports: | 1 X PS/2, 1 X D-Sub, 1 X DVI-D, 1 X LAN, 4 X USB 3.1 Gen1, 2 X USB 2.0, 3 X Audio | Special Features: | Supports Intel K-Series Unlocked CPU, Supports Intel Turbo Boost Technology 2.0 |
| Storage Interface: | 4 X SATA 6Gb/s | ||
| Highlight: | Industrial PC Mainboard Ddr4,Intel H110 Industrial PC Mainboard |
||
Product Description
Intel LGA1151 H110 Industrial PC Mainboard Ddr4 6 Com 3 Lan 1×PCIE X16 2×PCIE X4 4×PCI
Specifications
| Processor system | CPU | Support Intel 6th generation, 7th generation Core, Pentium, Celeron series processors |
| CPU package | LGA1151 | |
| chipset | H110 | |
| BIOS | EFI BIOS | |
| RAM | Technology Architecture | Dual channel DDR4 2133 / 2400MHz |
| Slot | 2 DDR4 memory slots, maximum support 64G | |
| video | Graphics controller | Intel HD Graphics 630 (graphic card model is related to CPU) |
| VGA | 2 * 6, 2.54mm pin header, maximum resolution support 1920 * 1200 @ 60Hz | |
| HDMI | Maximum resolution support (HDMI1.4) 4096 * 2304 @ 24Hz | |
| DP | / | |
| DVI | Maximum resolution supports 1920 * 1200 @ 60Hz | |
| Three disply | Support three-screen synchronous or asynchronous display | |
| I / O backplane | port |
1 * VGA 1 * HDMI 1 * DVI 2 * LAN 4* USB3.0 1 * MIC-OUT / LINE-OUT / LINE IN |
| The internet | Controller |
2 * Intel I211AT Gigabit LAN |
| Audio | Controller | Realtek HD ALC269Q-VB audio decoding (LINE-OUT + MIC_IN + LINE-IN + SPKOUT) |
| Super I / O | Controller | NCT6106D |
| Hardware monitoring | Watchdog timer | 0-255 seconds, provide watchdog routine |
| Input / output interface | USB |
4 * USB3.0 compatible with USB2.0 / 1.1 6 * USB2.0, maximum support + 5V / 1.5A |
| Serial port |
6 * COM COM1 can be selected as RS232 / RS485 / RS422 (DB9 interface) through DIP switch and BIOS settings COM2, 3, 4, 5, 6 can be selected as RS232 or RS485 (pin header) through jumper cap and BIOS |
|
| Print port | 1 * LPT | |
| PS / 2 | 1 * PS / 2 pin interface | |
| GPIO | 1 * 8 bits, provide routines, freely define input / output, 5V @ 24mA level | |
| Expansion bus | Mini-PCle | 1 Mini-PCIe slot, support PCIe device |
| PCIE |
1 PCIEx16 slot 1 PCIEx4 slots 1 PCIEx1 slot |
|
| PCI | 4 PCI slots | |
| storage | M.2 | 1 Mini pcie(msata) |
| SATA | 3 standard SATAIII interfaces, maximum transfer rate 6Gb / s | |
| power supply | Power type | ATX power supply |
| working environment | Operating temperature | -20 ℃ ~ + 60 ℃ |
| storage temperature | -40 ℃ ~ + 85 ℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| system | Windows7 Windows10 Linux | |

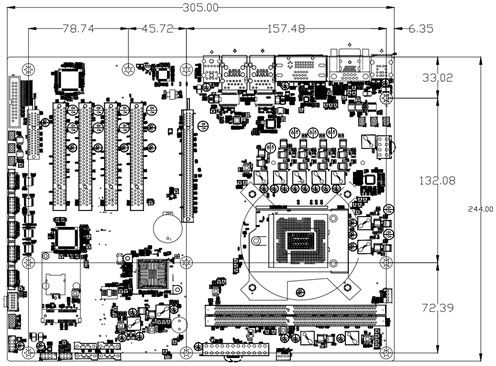

| physical dimension | size | 305x244 mm |
| weight | 0.5KG |
