2LAN 6COM 8USB 3.5" Motherboard Soldered Onboard Intel J1900 CPU
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | CE FCC |
| Model Number: | J1900-3.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Audio Chipset: | Realtek ALC1220 | Chipset: | J1900 |
|---|---|---|---|
| Expansion Slots: | PCIe X16, PCIe X1 | Form Factor: | Motherboard |
| LAN Chipset: | Intel I219V | Max Memory Speed: | 4133MHz |
| Memory Capacity: | 64GB | Memory Type: | DDR4 |
| Number Of Memory Slots: | 4 | Power Connector: | 24-pin ATX, 8-pin ATX |
| Size: | 3.5 Inch | Socket Type: | LGA1151 |
| Storage Interface: | SATA 6Gb/s, M.2 | USB Ports: | USB 3.1 Gen 1, USB 3.1 Gen 2 |
| Video Ports: | HDMI, DisplayPort | ||
| Highlight: | 2LAN 3.5" Motherboard,6COM 3.5" Motherboard,8USB Intel J1900 Motherboard |
||
Product Description
J1900-HLZ 3.5" Motherboard Soldered Onboard Intel® J1900 CPU 2LAN 6COM 8USB
Detailed Product Description
| Name: | 3.5" Motherboard | CPU/GPU: | Soldered Onboard Intel® J1900 CPU |
|---|---|---|---|
| Memory: | 1 X DDR3 SO-DIMM Sockets, Supporting Up To 8GB SDRAM | Storage: | 1×SATA ,1×M-SATA |
| Ethernet: | 2 Gigabit LAN | Backplane I / O: | DC In, VGA, HDMI, 2 RJ45 LAN, USB3.0+USB2.0, Line-out |
| Graphics Interface: | 1×VGA, 1×HDMI；1× LVDS(EDP Optional) | USB2.0: | 7 |
| USB3.0: | 1 | GPIO: | 8bit |
| High Light: | 3.5 inch single board computer,single board computer intel cpu | ||
J1900-HLZ 3.5” Single board computer, Soldered Onboard Intel® J1900 CPU, 2LAN/6COM/8USB
Feature
■ Soldered Onboard Intel®J1900 CPU
■ 2 Gigabit LAN
■ VGA, HDMI, LVDS(or EDP) Graphics Interface
■ 6COM RS232(2 Support RS485)
■ 7USB2.0, 1USB3.0
■ 8bit GPIO
■ 1 MSATA, 1 Mini PCIE expend
■ SIM Socket
■ 1~255S reset Watchdog Timer
Specification
| CPU/GPU | Soldered Onboard Intel® J1900 CPU | |||||
| Memory | 1 x DDR3 SO-DIMM sockets, supporting up to 8GB SDRAM | |||||
| Storage | 1×SATA ,1×M-SATA | |||||
| Audio | Realtek ALC662, supports 5.1 channels | |||||
| Ethernet | 2 Gigabit LAN | |||||
| Display | CPU integrated graphics | |||||
| Graphics Interface | 1×VGA, 1×HDMI；1× LVDS(EDP optional) | |||||
| USB2.0 | 7 | |||||
| USB3.0 | 1 | |||||
| GPIO | 8bit | |||||
| COM | 6 RS232 serial, COM3/COM4 support RS485 | |||||

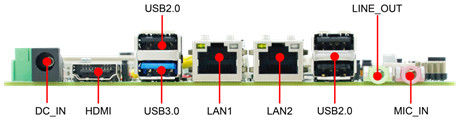

| Backplane I / O | DC in, VGA, HDMI, 2 RJ45 LAN, USB3.0+USB2.0, Line-out | |||||

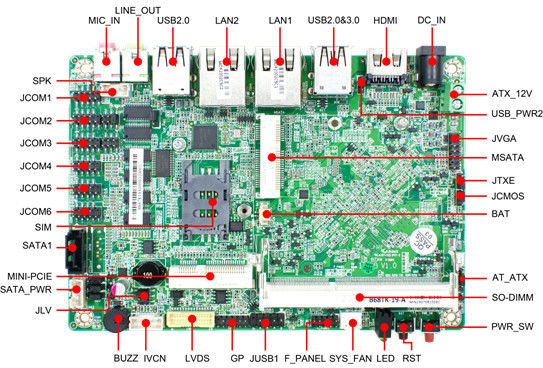

| Board I / O Pin | 6USB , 6 COM , front audio , CLR_CMOS , CPU fan power , System fan power , GPIO | |||||
| Front panel , Speaker, SIM Socket, 4P DC in, LVDS, invert, Print | ||||||
| Expand | 1MSATA, 1 MINI PCIE | |||||
| System | Support Windows(WIN 7, WIN 10...), Linux | |||||
| Mechanical & Environmental | ||||||

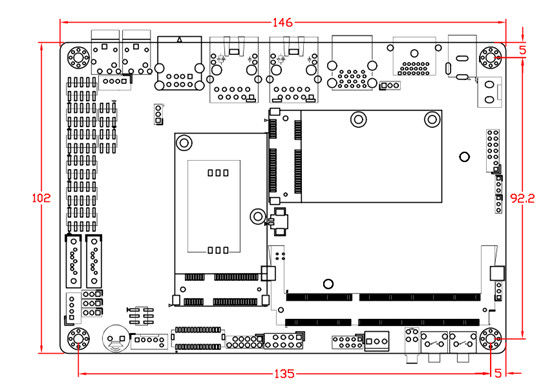

| Power supply | DC 12V | Heat dissipation | Cooling fin or Fan | Size(L×W) | 146mm×102mm | |
| Working temperature | -20~55℃ | Storage temperature | -40~75℃ | Environmental humidity | 0~90% air humidity,no condensation | |
| Packing list | J1900-3.5 motherboard ×1, SATA Data wire ×1, SATA power wire ×1, COM wire ×4 | |||||
