1000:1 17 Inch Industrial Touch Panel PC Computer Windows 10 I7 8550U CPU
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | E.hanli |
| Certification: | \ |
| Model Number: | HLZ-P170Z |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | According to Quantity |
| Payment Terms: | T/T |
| Supply Ability: | motherboard 120000 pieces / month ; IPC 6000 sets / month |
|
Detail Information |
|||
| Brightness: | 400 Cd/m2 | CPU: | Intel Core I7 |
|---|---|---|---|
| Contrast Ratio: | 1000:1 | Display Resolution: | 1280x 1024 |
| I/O Ports: | USB, HDMI, VGA | Mounting Options: | VESA, Wall Mount |
| Operating System: | Windows 10 | Power Supply: | DC 12V |
| RAM: | 8GB | Size: | 17 Inch |
| Storage: | 256GB SSD | Touch Screen Type: | Capacitive |
| Viewing Angle: | 178° | Warranty: | 1 Year |
| Highlight: | 17 Inch Industrial Touch Panel PC,1000:1 Industrial Touch Panel PC,Industrial Touch Panel Computer Windows 10 |
||
Product Description

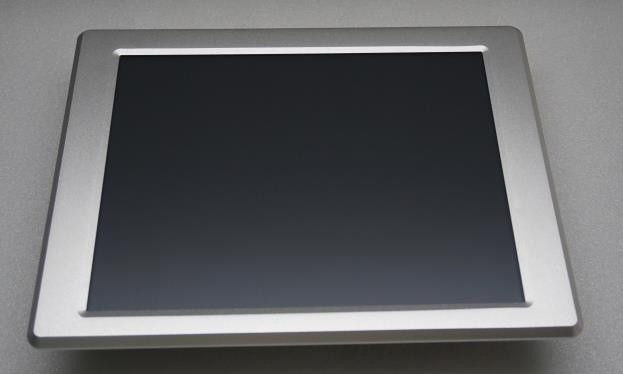

HLZ-P170Z 17" Industrial Touch Panel Computer I7 8550U CPU
Detailed Product Description
| Name: | Industrial Touch Panel PC | Adapt Motherboard: | Low-power ITX Motherboard |
|---|---|---|---|
| Touch Screen: | 4-wire Resistance Screen | CPU/GPU: | Intel I7 8550U |
| Memory: | 8G DDR4 | Hard Disk: | 512G M.2 |
| High Light: |
industrial touch screen pc,embedded touch screen computer |
||
HLZ-P170Z 17" Touch industrial tablet, board paste I7 8550U CPU
Features:
■ Ultra-low power, Board sticker I7 8550U CPU
■ Standardized Dual Network 6 Series 4-6 USB
■ Installation of VISA
■ Resistance Touch Screen
| Specification parameters | Optional configuration | |||||||
| Front panel | 1.2mm steel plate, black | Optional silver or other colours | ||||||
| Back chassis | 1.2mm steel plate, black | Optional silver or other colours | ||||||
| Adapt motherboard | Low power ITX motherboard | Optional all low power ITX motherboards of Yanyue | ||||||
| LCD screen | 17"TFT, LED backlight; Resolution 1280*1024; Lattice: 0.297*0.297; Maximum color: 16.7M; Brightness: 350cd/; Contrast: 800:1; Response speed: 16ms; MTBF: 50,000h Visual angle: (+80 -80)(+80 -80); | |||||||
| Touch screen | 4-wire resistance screen | Customizable Capacitance Screen | ||||||
| CPU/GPU | Intel I7 8550U | |||||||
| Memory | 8G DDR4 | Optional 4G/8G/16G/32G DDR4 notebook memory | ||||||
| Hard disk | 512G M.2 | Optional 64G/256G/512G Msata solid state hard disk; 2.5 "500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk | ||||||

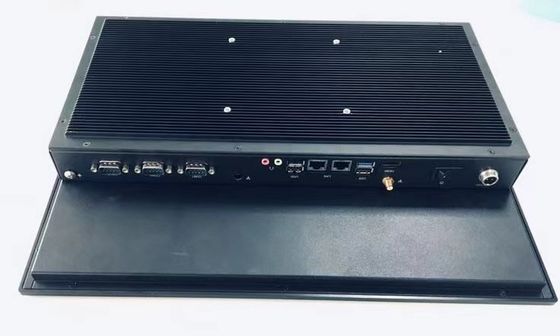

| Interface | DC12V; 4-6USB; 1-2RJ45 (gigabit); VGA; HDMI, audio output; 6COM; | Customizable air plug or Phoenix terminal power input | ||||||
| Size | 400mm(length)* 304mm(width)* 62mm(thickness) | Weight | 4/5KG | |||||
| Industrial Power Supply | 12V@5A industrial adapter | |||||||
| Installation mode | VISA wall mounting installation | |||||||
| Work and Environment | ||||||||
| Working temperature | 0～60℃ | Storage temperature | -40～75℃ | Environmental humidity | 0~90% air humidity, no condensation | |||
| IP Level | Panel IP62 | Vibration | 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration | |||||
| EMC | GB9254-2008 class A | Shock | 10g acceleration, 11ms duration | |||||
